Steel Fume Hood

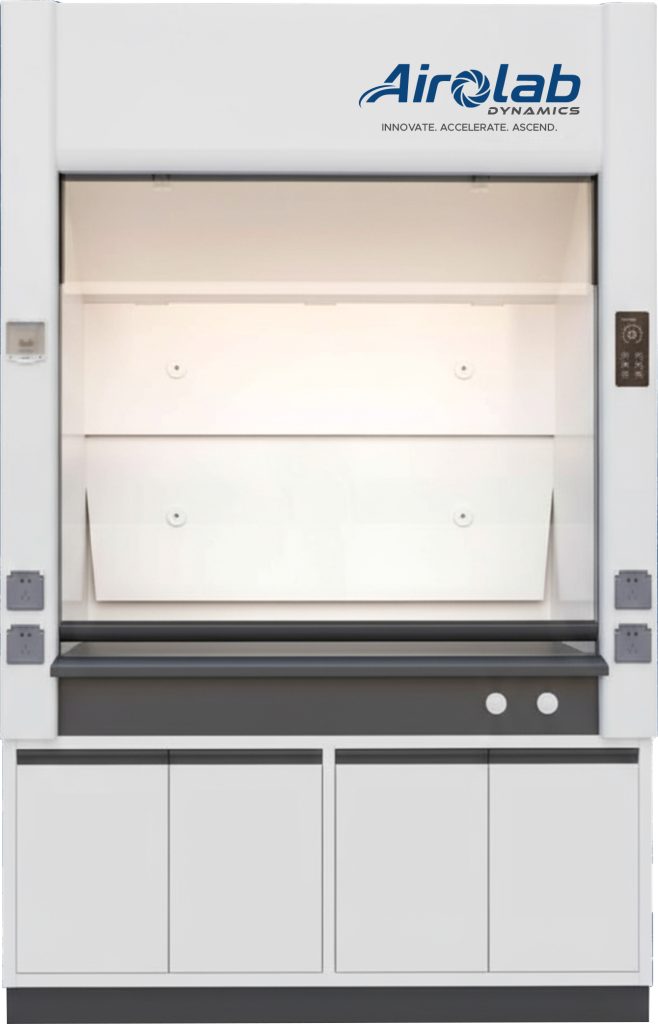

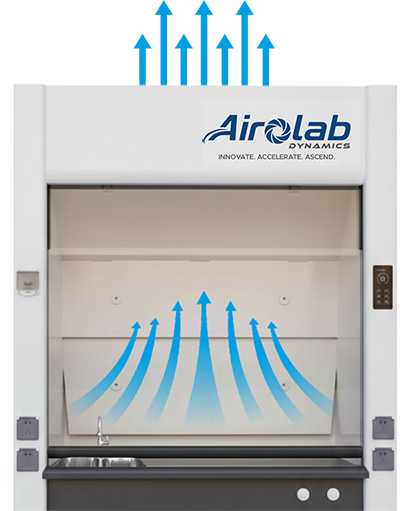

A steel fume hood is a robust laboratory enclosure designed to safeguard personnel while handling volatile or harmful chemicals. Constructed from heavy-gauge steel with a durable protective coating, it delivers long-term resistance against mechanical wear and chemical attack. The hood channels contaminated air away from the operator through a powerful exhaust system, ensuring a secure and stable working atmosphere.

Optional Accessories

Features

Model No 1200 1500 1800
External Size 1200*850*2350 1500*850*2350 1800*850*2350
Internal Size 950*668*1180 1250*668*1180 1550*668*1180

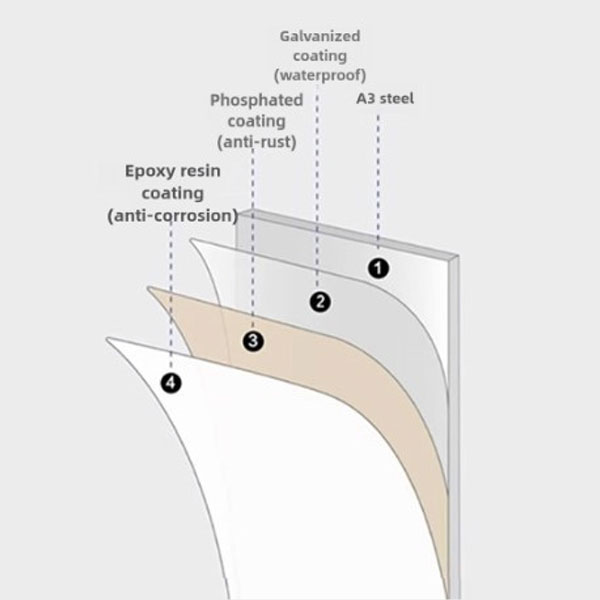

Material 1.0 – 1.2 mm thick cold rolled steel plate
Window Embedded 5 mm Tempered Glass
Opening Height 800 mm
Countertop Acid & alkali resistant solid core board
Baffle 5 mm thick resistant sheet

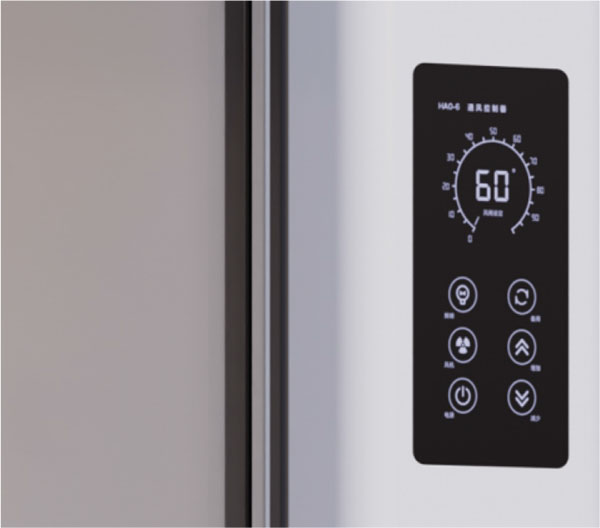

LCD Panel Power / lighting / fan / damper control
Electrical 4 x 10A 220V socket
Exhaust 250 mm
Customization Available
Cabinet Storage included

Ease of Operation

Material of Construction
